Chassis

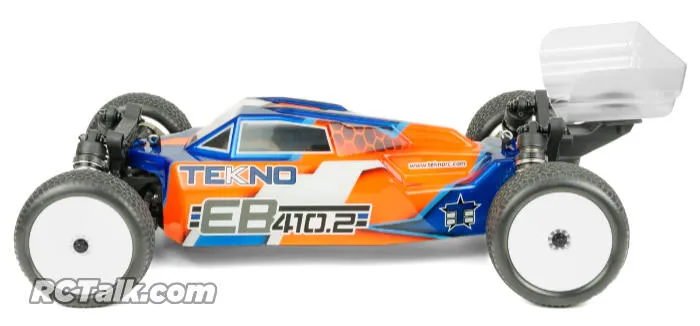

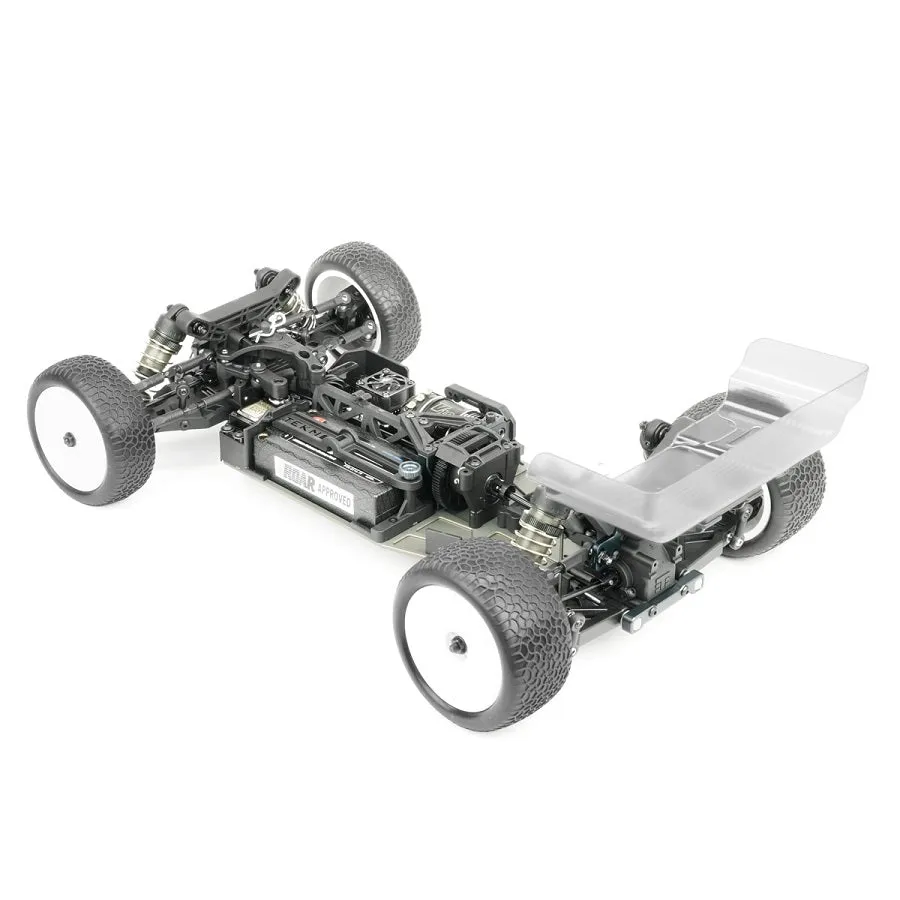

• Purpose-built 1/10th scale 4×4 buggy.
• Innovative weight forward layout.
• New 3mm CNC 7075 aluminum hard anodized lightened chassis with keyed in suspension blocks for improved durability.
• Low COG; Electronics and components sunken into chassis.
• Integrated battery wire guides.
• Ample room for the most popular electronics.
• Popular shorty pack configuration. Better balanced and lighter weight
• Easy access battery for quick removal and replacement.
• Adjustable chassis brace system for fine-tuning rear flex.

Differentials and Drivetrain

• Easy access differentials.
• Three oversized fluid-filled adjustable lightweight diffs.
• Lightened outdrives and diff couplers used throughout.
• Tapered aluminum center driveshafts.
• Angled rear gearbox with large bearings.
• Straight center driveline for maximum efficiency and minimal wear.
• High strength metal ring, pinion, and internal diff gears.
• CVA drive shafts with bearing captured pins.
• Oversized 6mm stub axles with custom serrated and lightened wheel nuts.

Shocks

• Smooth 13mm big bore shocks.
• Industry-leading COG with compact tower and shock design.
• Super durable 10mm front and 8mm rear composite shock towers.
• New flat/flat piston design and configuration (Front – 8 x 1.2 mm, Rear – 8 x 1.3 mm).
• Fully adjustable long travel suspension geometry maximizes stability and traction while providing superior cornering and on-power steering.
• SNew strong 3.5mm polished steel shock shafts.
• CNC threaded shock bodies and adjustment nuts.
• Composite emulsion shock caps.
• Clamping spring perches.
• CNC Delrin double shock guide design for true and consistent shaft action.
• Double X-Ring o-rings to provide smooth and consistent damping.
• Optional springs and sway bars are available.

Suspension and Steering

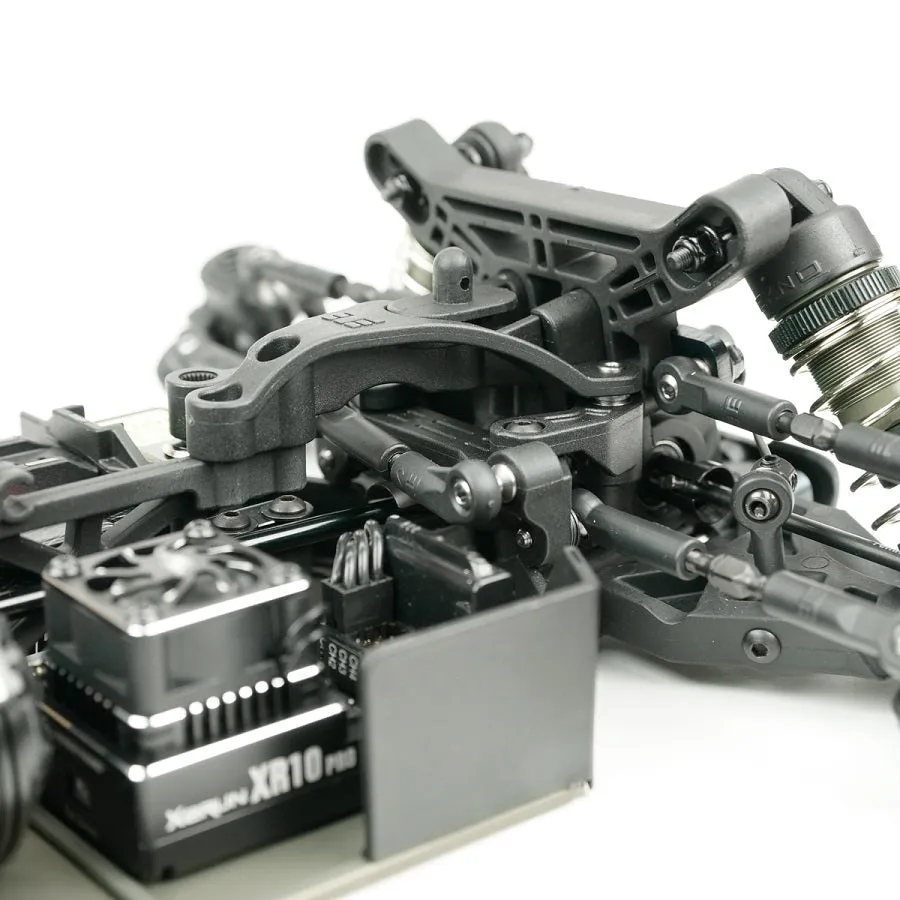

• First in class compact reverse bellcrank design producing consistent steering response.
• New rear arms and sway bar mount for front-mounted shocks.
• New 15° caster LRC spindle carriers.
• Bearing supported bellcrank and ackermann plate.
• Adjustable Ackermann and bump-steer (bump in, zero bump, bump out).
• Adjustable steering stops for precise steering travel settings.
• Adjustable front arm sweep and angle to make the car more stable, or aggressive.
• Captured outer front and rear hinge pins.
• Front gullwing arms lowering COG.
• New adjustable heavy-duty CNC 7075 hinge pin braces.
• Long rear sway bar for improved consistency.
• New HD 3.5mm inner and 3mm outer hinge pins, polished for smooth action.
• New composite hubs with camber link and roll center adjustment.
• New C and D blocks for increased precision toe and anti-squat adjustability.
• Custom locking kingpin screws.

Motor Mount

• 2-piece CNC aluminum motor mount with precision gear mesh adjustment.
• Split center diff mount for easy maintenance.
• New 81t spur gear with improved durability.
• Lightweight direct-to-diff mount design.
• Uses standard 48 pitch pinion gears.
• Includes integrated fan mount.

Other Features

• High downforce wing with hole guides included.
• New 5mm one-piece wing mount.
• Easily adjust anti-squat, rear toe, front arm angle, front arm sweep, roll center, toe, camber, wheelbase, Ackermann, bump steer, suspension geometry out of the box.
• Full set of option parts available.
• Extremely easy to work on with minimal screw count.
• All metric hex hardware.

Specifications

• Length: 393mm (without wing) up to 424mm (with wing)
• Wheelbase: 283-294mm
• Width: 246-250*mm (*optional hubs required)
• Weight: 1630 (or less) to 1780g depending upon equipment used
• Diff Ratio: F/R – 16/40t, Center – 81t
• Battery tray dimensions: 96x47x26mm
• Kit/RTR: Kit

Needed to Complete

• 2/3 channel radio/transmitter
• 1/10 scale ESC and motor system
• High torque steering servo (at least 200oz/in)
• 48 pitch 17 to 34 tooth pinion
• 2s shorty LiPo battery (at least 4000mAh)
• 1/10th scale 4wd buggy tires, wheels & CA glue
• Paint for body

Recommended Tools

• Nut drivers 5.5mm (TKR1108) and 7.0mm (TKR1109)
• Hex drivers 1.5mm, 2.0mm, and 2.5mm
• Hobby knife
• Needle-nose pliers
• Shock tool (TKR1115) OR adjustable (Crescent) wrench (for shock assembly)
• 4mm turnbuckle wrench (TKR1103) – 5.5/7.0 two-sided wrench (TKR1119)
